This guide covers everything you need to process volumetric calcium imaging data with LBM-Suite2p-Python.

Tip

For interactive examples, see the Quickstart Notebook and Grid Search Notebook.

Input formats#

The pipeline accepts all filetypes at mbo_utilities imread() accepts.

uv run mbo formats

Supported input formats:
  .tif, .tiff  - TIFF files (BigTIFF, OME-TIFF, ScanImage)
  .zarr        - Zarr v3 arrays
  .bin         - Suite2p binary format (with ops.npy)
  .h5, .hdf5   - HDF5 files
  .npy         - NumPy arrays
  .json        - Zarr array metadata (loads parent .zarr)

Supported output formats:
  .tiff        - Multi-page BigTIFF
  .zarr        - Zarr v3 with optional OME-NGFF metadata
  .bin         - Suite2p binary format
  .h5          - HDF5 format
  .npy         - NumPy array (with .json metadata)

Pipeline Basics#

The lsp.pipeline() function is the recommended entry point for all processing. It automatically handles:

Any input type: Files, directories, or pre-loaded arrays from mbo_utilities
Multi-plane data: Processes each z-plane independently
Multi-ROI data: Stitches or splits ScanImage multi-ROI acquisitions
Metadata extraction: Auto-populates frame rate, pixel resolution, etc.

import lbm_suite2p_python as lsp

# Process a directory of raw ScanImage TIFFs
results = lsp.pipeline(
    input_data="D:/data/raw_tiffs",
    save_path="D:/results",
)

# Process specific planes from a volume
results = lsp.pipeline(
    input_data="D:/data/volume.zarr",
    save_path="D:/results",
    planes=[1, 5, 10],  # 1-indexed
)

# Process a pre-loaded array (e.g., from mbo_utilities GUI)
import mbo_utilities as mbo
arr = mbo.imread("D:/data/raw")
results = lsp.pipeline(
    input_data=arr,
    save_path="D:/results",
    roi=0,  # Split all ROIs into separate outputs
)

# Custom Suite2p parameters
results = lsp.pipeline(
    input_data="D:/data",
    ops={"diameter": 8, "threshold_scaling": 0.8},
)

Pipeline Parameters#

Parameter	Type	Default	Description
`input_data`	path, list, array	required	File, directory, list of files, or lazy array
`save_path`	path	None	Output directory (auto-detected if None)
`ops`	dict	None	Suite2p parameters (uses defaults if None)
`planes`	int, list	None	Which planes to process (1-indexed, None=all)
`roi`	int	None	ROI handling: None=stitch, 0=split, N=specific ROI
`keep_reg`	bool	True	Keep registered binary after processing
`keep_raw`	bool	False	Keep raw binary after processing
`force_reg`	bool	False	Force re-registration
`force_detect`	bool	False	Force ROI detection
`dff_window_size`	int	None	Window for ΔF/F baseline (auto-calculated from tau and framerate)
`dff_percentile`	int	20	Percentile for baseline F₀
`dff_smooth_window`	int	None	Temporal smoothing for dF/F traces (auto-calculated)
`save_json`	bool	False	Save ops as JSON in addition to .npy
`reader_kwargs`	dict	None	Keyword arguments passed to `mbo_utilities.imread()`
`writer_kwargs`	dict	None	Keyword arguments passed to binary writer

Reader and Writer Kwargs#

When processing raw ScanImage TIFFs or other input formats, you may need to control how the data is read. The reader_kwargs parameter passes arguments directly to mbo_utilities.imread().

Reader Options for Raw ScanImage TIFFs#

Option	Type	Default	Description
`fix_phase`	bool	True	Apply phase correction for bidirectional scanning
`phasecorr_method`	str	‘mean’	Phase correction method (‘mean’, ‘mode’, ‘median’)
`border`	int	3	Border pixels to ignore during phase estimation
`use_fft`	bool	False	Use FFT-based subpixel phase correction
`fft_method`	str	‘2d’	FFT method (‘1d’ or ‘2d’)
`upsample`	int	5	Upsampling factor for subpixel precision
`max_offset`	int	4	Maximum phase offset to search

Examples#

import lbm_suite2p_python as lsp

# Enable FFT-based phase correction for higher precision
results = lsp.pipeline(
    input_data="D:/data/raw_tiffs",
    save_path="D:/results",
    reader_kwargs={
        "fix_phase": True,
        "use_fft": True,
        "fft_method": "2d",
    },
)

# Disable phase correction for already-corrected data
results = lsp.pipeline(
    input_data="D:/data/corrected_tiffs",
    save_path="D:/results",
    reader_kwargs={"fix_phase": False},
)

Writer Options#

Option	Type	Default	Description
`target_chunk_mb`	int	100	Target chunk size in MB for streaming writes
`progress_callback`	Callable	None	Callback function for progress updates

Planar Pipeline#

For testing parameters or processing individual planes:

results = lsp.pipeline(
    input_data=files[0],        # path to .zarr, .tiff, or .bin file
    save_path=None,             # default: save next to input file
    ops=None,                   # default: use MBO-optimized parameters
    planes=1,                   # process single plane (1-indexed)
    roi=None,                   # default: stitch multi-ROI data
    keep_reg=True,              # default: keep data.bin (registered binary)
    keep_raw=False,             # default: delete data_raw.bin after processing
    force_reg=False,            # default: skip if already registered
    force_detect=False,         # default: skip if stat.npy exists
    dff_window_size=None,       # default: auto-calculate from tau and framerate
    dff_percentile=20,          # default: 20th percentile for baseline
    dff_smooth_window=None,     # default: auto-calculate from tau and framerate
    save_json=False,            # default: only save ops.npy
)

Planar Outputs#

Each z-plane directory contains:

Data Files#

File	Shape	Description
`ops.npy`	dict	Processing parameters and metadata
`stat.npy`	(n_rois,)	ROI definitions (pixel coordinates, weights, shape stats)
`F.npy`	(n_rois, n_frames)	Raw fluorescence traces
`Fneu.npy`	(n_rois, n_frames)	Neuropil fluorescence traces
`spks.npy`	(n_rois, n_frames)	Deconvolved spike estimates
`iscell.npy`	(n_rois, 2)	Cell classification: `[:, 0]` = is_cell (0/1), `[:, 1]` = probability
`data.bin`	(n_frames, Ly, Lx)	Registered movie (if `keep_reg=True`)
`data_raw.bin`	(n_frames, Ly, Lx)	Raw movie (if `keep_raw=True`)

Visualization Files#

Files are numbered to ensure proper ordering when viewing in file browsers.

File	Description
`01_correlation.png`	Pixel-wise correlation image
`01_correlation_segmentation.png`	Correlation image with ROI overlay
`02_max_projection.png`	Maximum intensity projection
`02_max_projection_segmentation.png`	Max projection with ROI overlay
`03_mean.png`	Temporal mean image
`03_mean_segmentation.png`	Mean image with ROI overlay

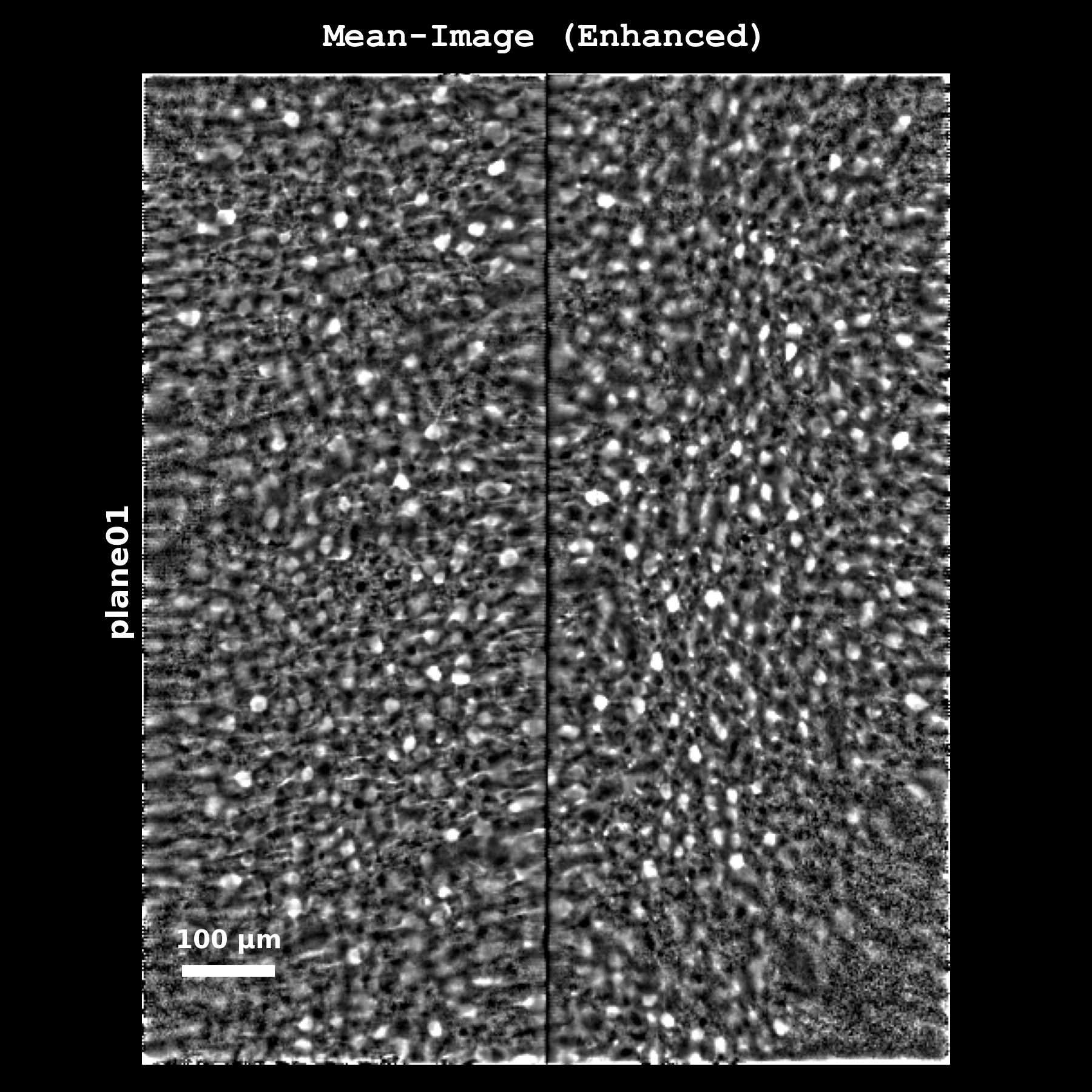

`04_mean_enhanced.png`	Enhanced mean image (edge sharpened)

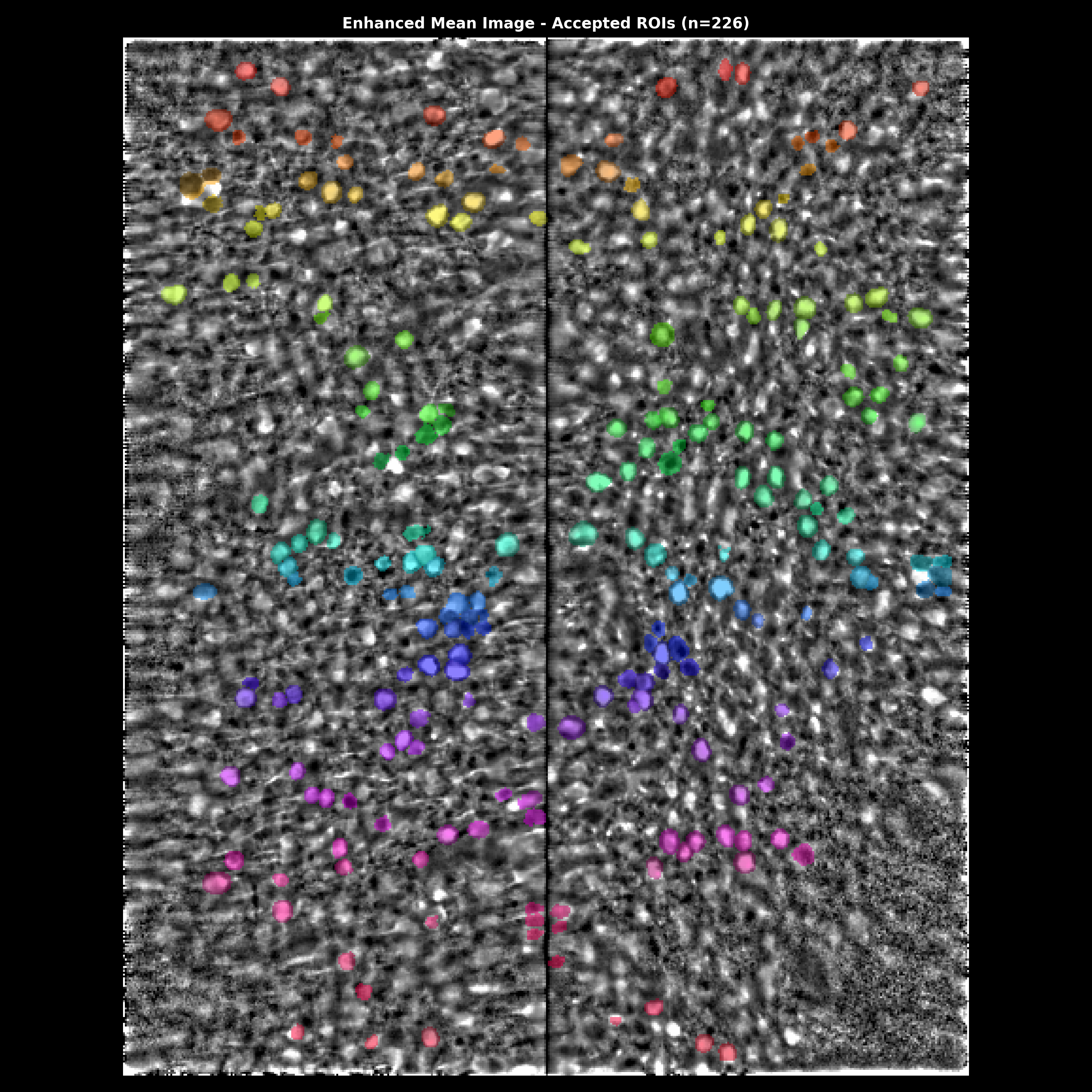

`04_mean_enhanced_segmentation.png`	Enhanced mean with ROI overlay
`05_quality_diagnostics.png`	ROI size, SNR, compactness metrics
`06_registration.png`	Registration quality visualization
`07_traces_raw.png`	Sample raw fluorescence traces

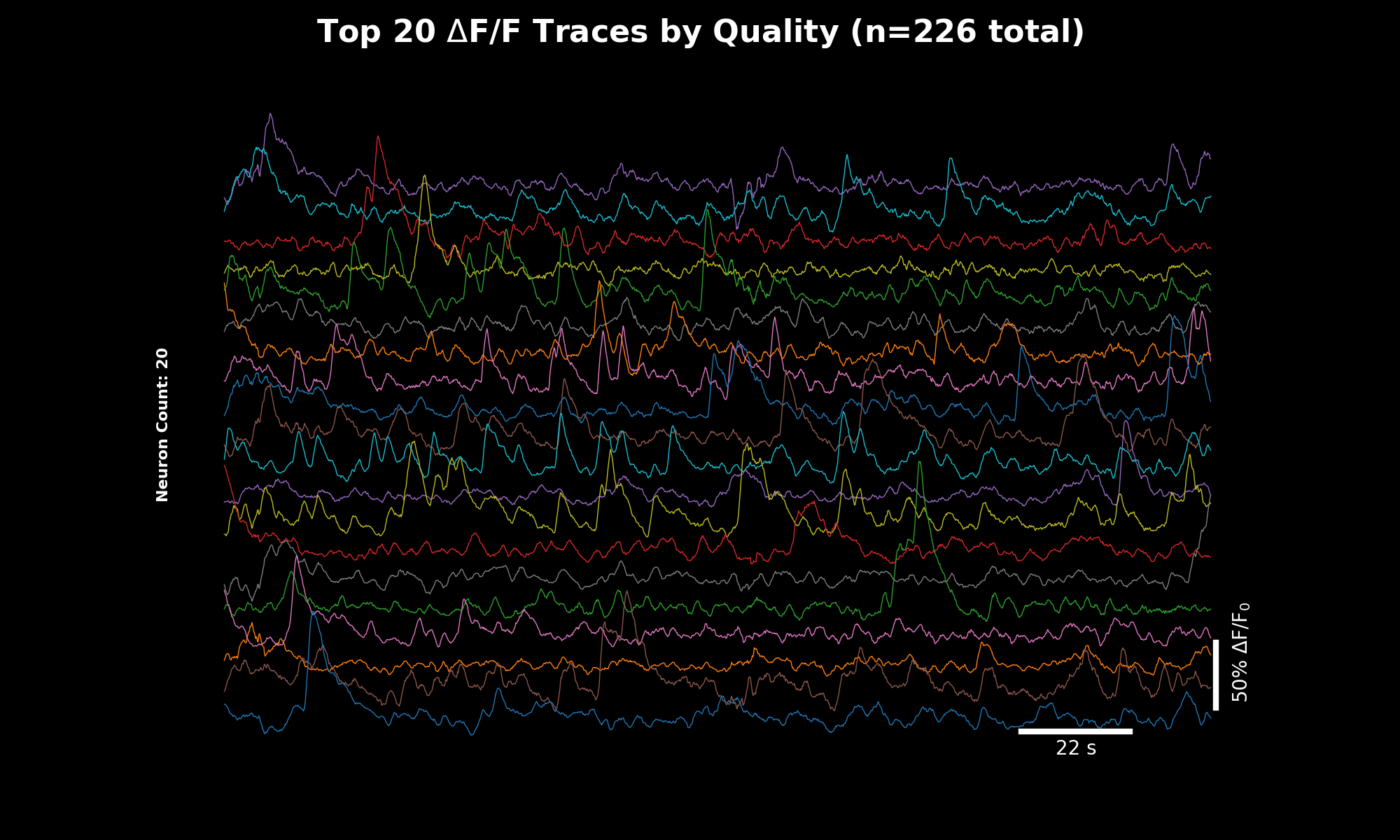

`08_traces_dff.png`	Sample ΔF/F traces
`09_traces_noise.png`	Noise estimation traces (rejected ROIs)
`10_noise_accepted.png`	Shot noise histogram (accepted)
`11_noise_rejected.png`	Shot noise histogram (rejected)

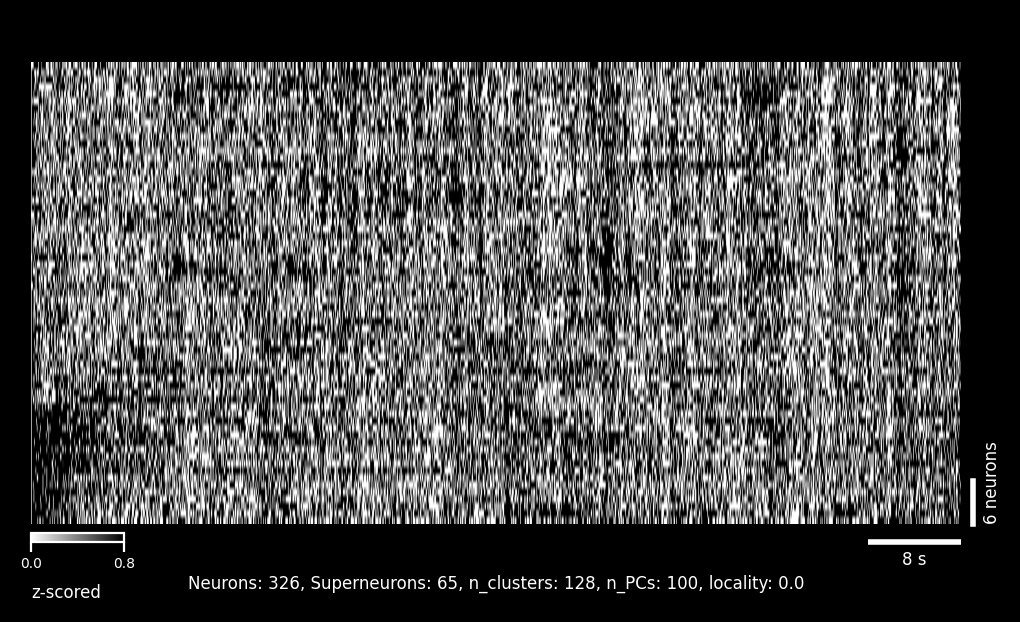

`12_rastermap.png`	Activity sorted by similarity
`pc_metrics.csv`	Registration quality metrics
`pc_metrics_panels.tif`	PC metric visualization panels

Reference Images#

The pipeline generates several reference images that serve as both quality checks and visualization aids. Each image is computed from the temporally high-pass filtered, registered movie.

How Reference Images Are Computed#

During Suite2p detection, the registered movie undergoes temporal high-pass filtering to remove slow baseline fluctuations. This is done via temporal_high_pass_filter(mov, width=high_pass) which subtracts either a Gaussian-filtered or rolling mean version of the movie over time. The reference images are then computed from this filtered movie:

Image	Computation	Code
`max_proj`	Maximum across time of HP-filtered movie	`mov_hp.max(axis=0)`
`meanImg`	Mean across time of registered movie	`mov.mean(axis=0)`
`meanImgE`	Enhanced mean with median HP filter	See below

The enhanced mean image (meanImgE) applies a spatial high-pass filter using a median filter to sharpen cell boundaries:

def compute_enhanced_mean_image(mean_img, diameter=12):
    I = mean_img.astype(np.float32)
    d = int(4 * np.ceil(diameter) + 1)
    Imed = median_filter(I, size=d)
    I = I - Imed  # Subtract local median (high-pass)
    Idiv = median_filter(np.abs(I), size=d)
    I = I / (1e-10 + Idiv)  # Normalize by local contrast
    I = np.clip((I + 6) / 12, 0, 1)  # Scale to [0, 1]
    return I

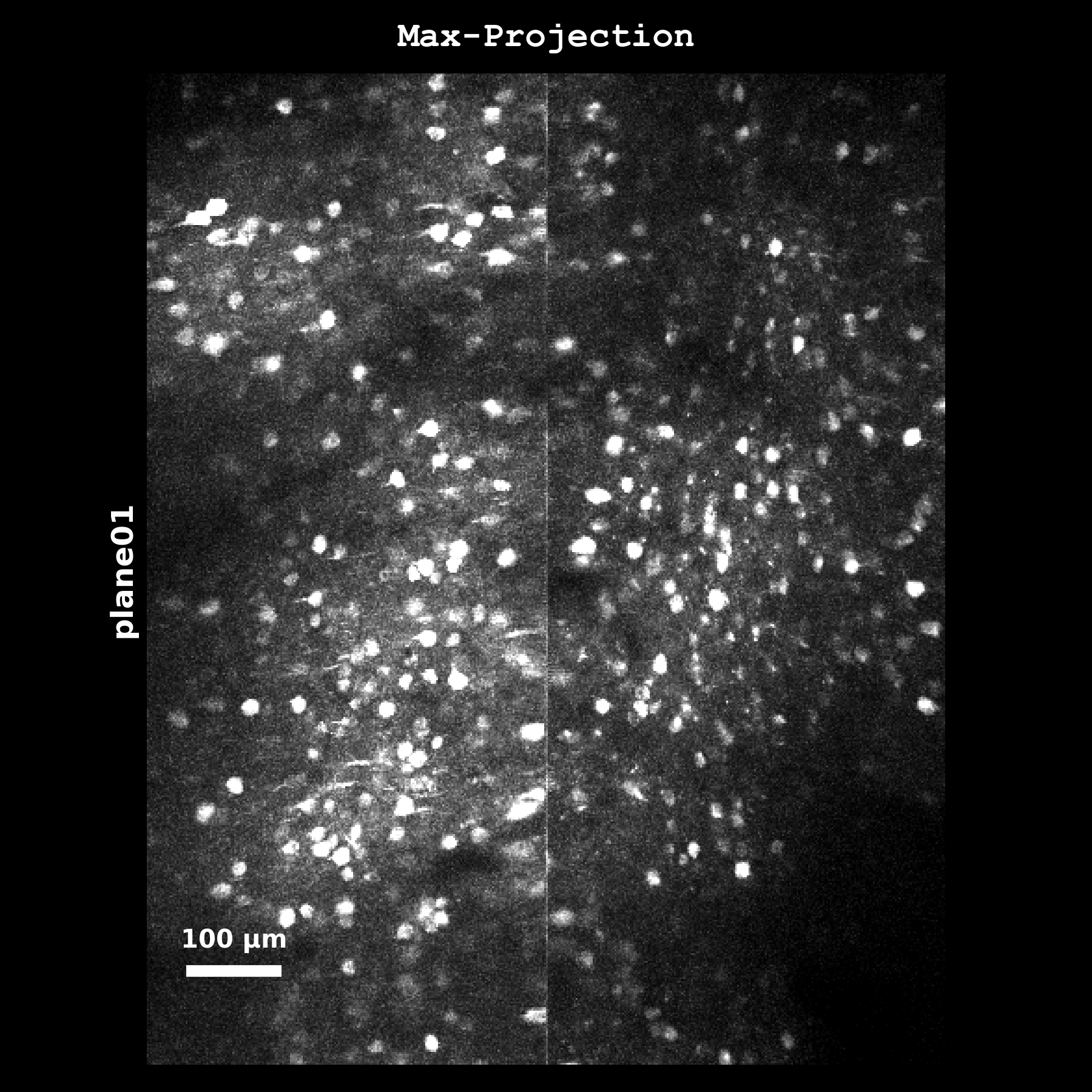

Maximum Intensity Projection — **Maximum intensity projection** (`max_proj`) computed as `mov_hp.max(axis=0)` from the temporally high-pass filtered registered movie. Highlights the brightest pixels over time, useful for identifying highly active regions and checking for motion artifacts. This is the image used when `anatomical_only=4`.#

Enhanced Mean Image — **Enhanced mean image** (`meanImgE`) with median filter high-pass applied. This spatial filtering makes darks darker and brights brighter, sharpening cell boundaries. This is the recommended image for Cellpose anatomical detection (`anatomical_only=3`).#

Segmentation Overlays#

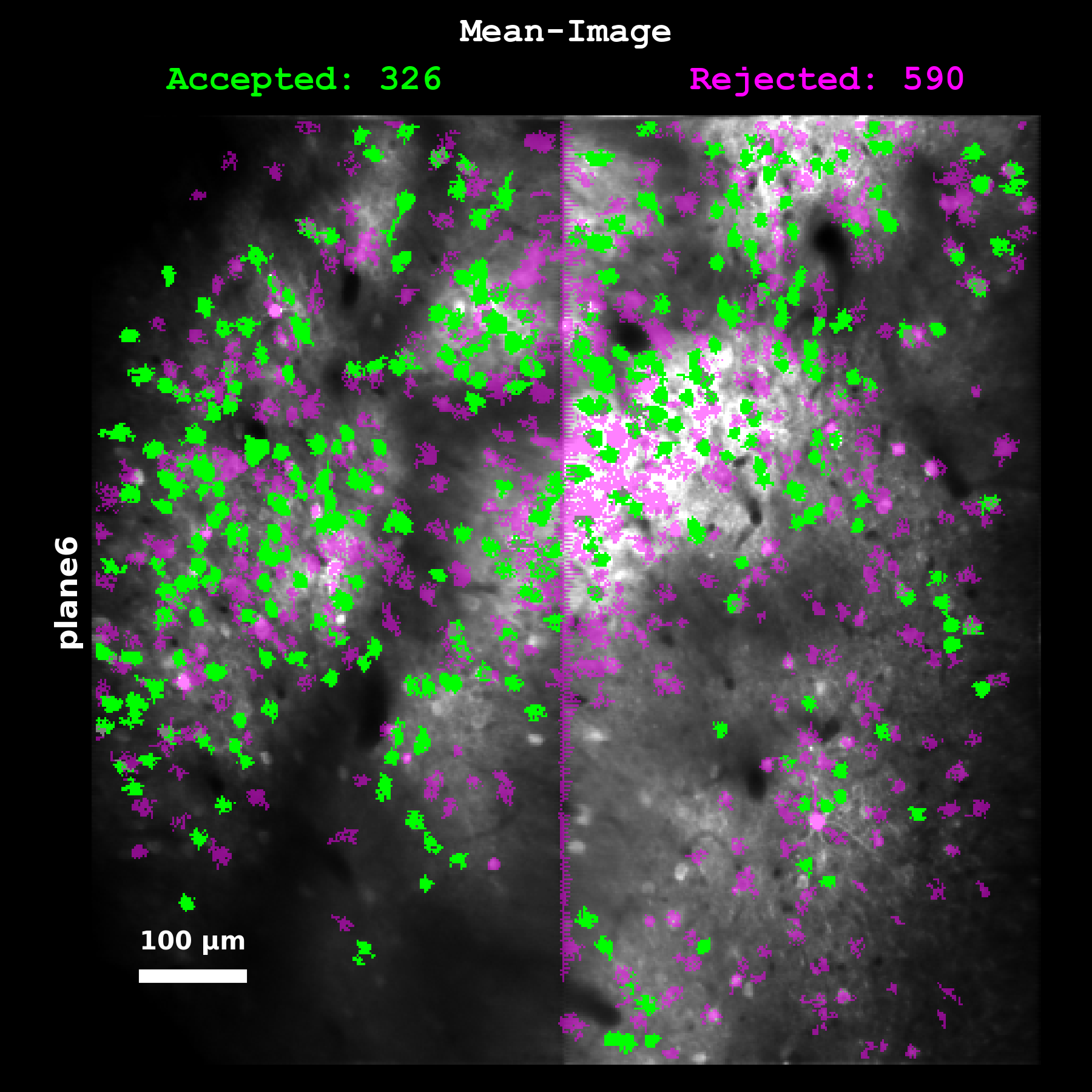

Each reference image has a corresponding segmentation overlay showing detected ROIs:

Quality Diagnostics#

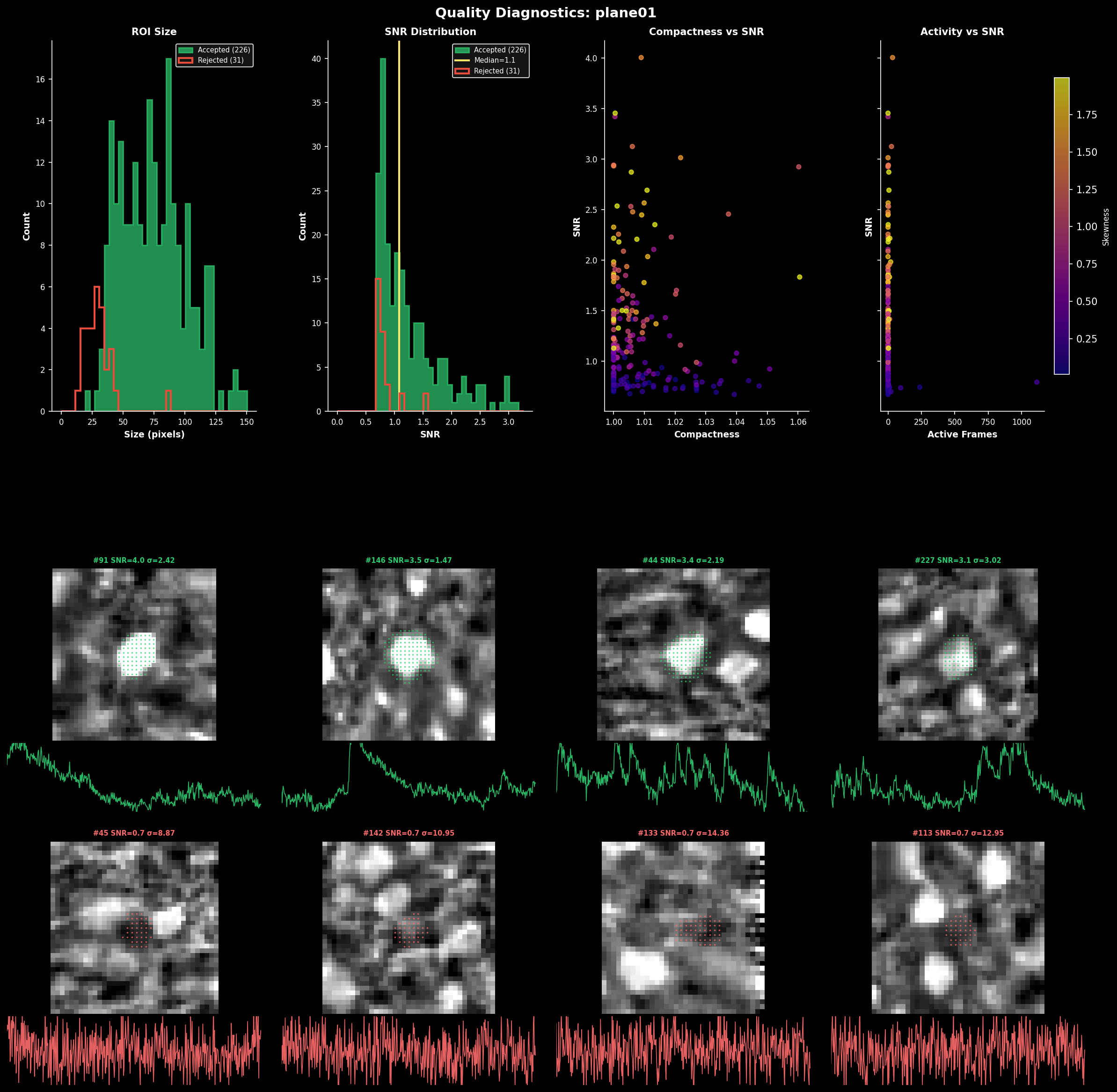

The quality diagnostics panel provides a multi-metric view of ROI quality:

Fluorescence Traces#

ΔF/F Traces — **ΔF/F traces** computed using rolling percentile baseline. These normalized traces are directly comparable across cells and experiments. The quality-sorted display surfaces the most reliable signals first.#

Trace Quality Sorting#

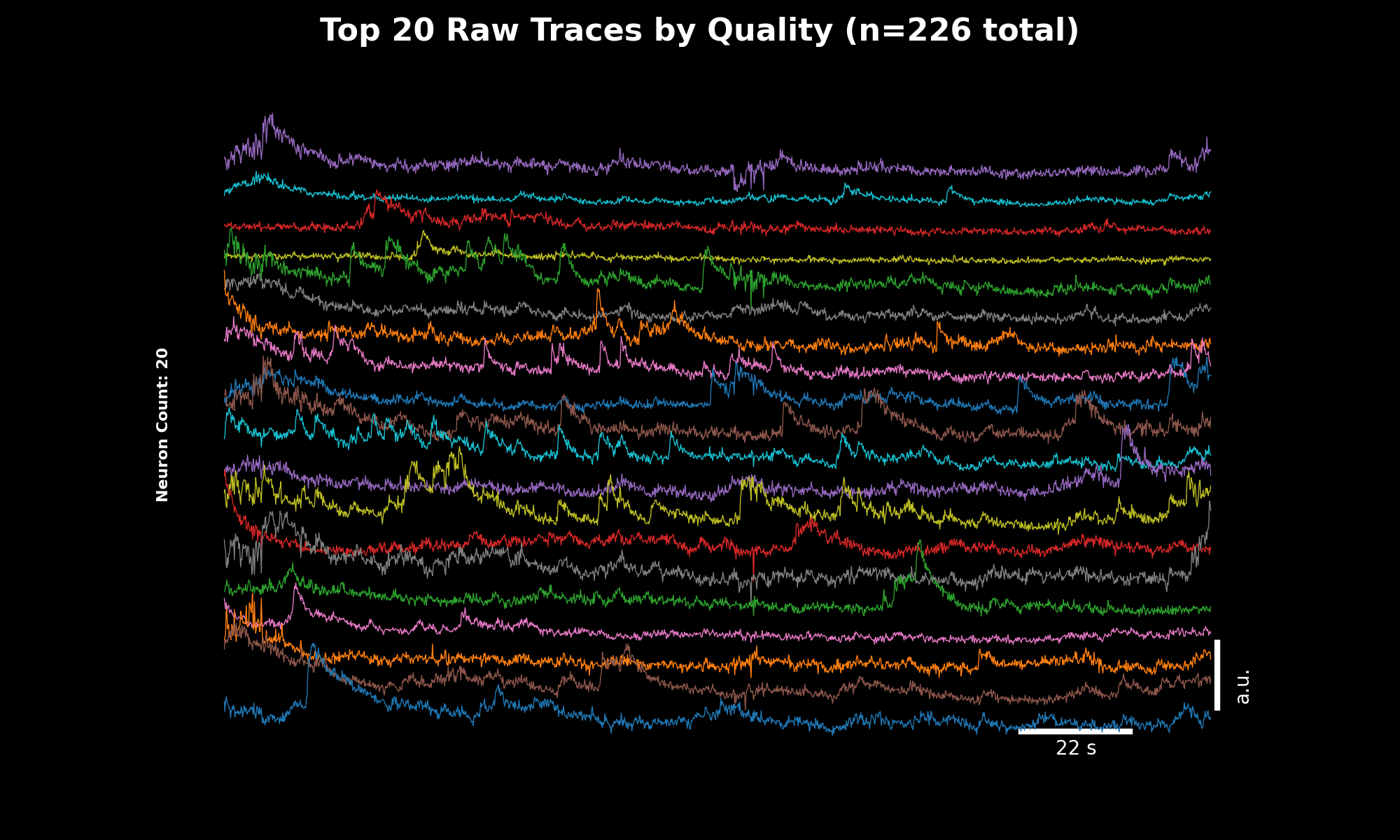

The trace plots (07_traces_raw.png, 08_traces_dff.png) display the top 20 neurons sorted by quality score. This weighted score combines three metrics to surface the best traces:

Metric	Weight	Description
SNR	1.0	Signal-to-noise ratio (higher = better)
Skewness	0.8	Positive skew indicates calcium transients
Shot Noise	0.5	Frame-to-frame variability (lower = better)

Using Quality Sorting in Your Analysis:

import lbm_suite2p_python as lsp

# Load planar results
results = lsp.load_planar_results("path/to/plane01")
F = results["F"]
Fneu = results["Fneu"]
stat = results["stat"]
iscell = results["iscell"]

# Filter for accepted cells
iscell_mask = iscell[:, 0].astype(bool)
F_acc = F[iscell_mask]
Fneu_acc = Fneu[iscell_mask]
stat_acc = [s for s, m in zip(stat, iscell_mask) if m]

# Compute quality scores
quality = lsp.compute_trace_quality_score(
    F_acc, Fneu_acc, stat_acc,
    fs=30.0,  # Your frame rate
    weights={'snr': 1.0, 'skewness': 0.8, 'shot_noise': 0.5}  # Default weights
)

# Sort traces by quality (best first)
sort_idx = quality['sort_idx']
F_sorted = F_acc[sort_idx]

# View individual metrics
print(f"SNR range: {quality['snr'].min():.2f} - {quality['snr'].max():.2f}")
print(f"Best neuron score: {quality['score'][sort_idx[0]]:.2f}")

# Plot top 50 neurons
lsp.plot_traces(
    F_sorted,
    num_neurons=50,
    fps=30.0,
    scale_bar_label="Raw F",
    title="Top 50 Neurons by Quality Score"
)

Custom Weights:

Adjust weights based on your priorities:

# Prioritize low noise over skewness
quality = lsp.compute_trace_quality_score(
    F, Fneu, stat, fs=30.0,
    weights={'snr': 1.0, 'skewness': 0.3, 'shot_noise': 1.0}
)

Activity ΔF/F Traces#

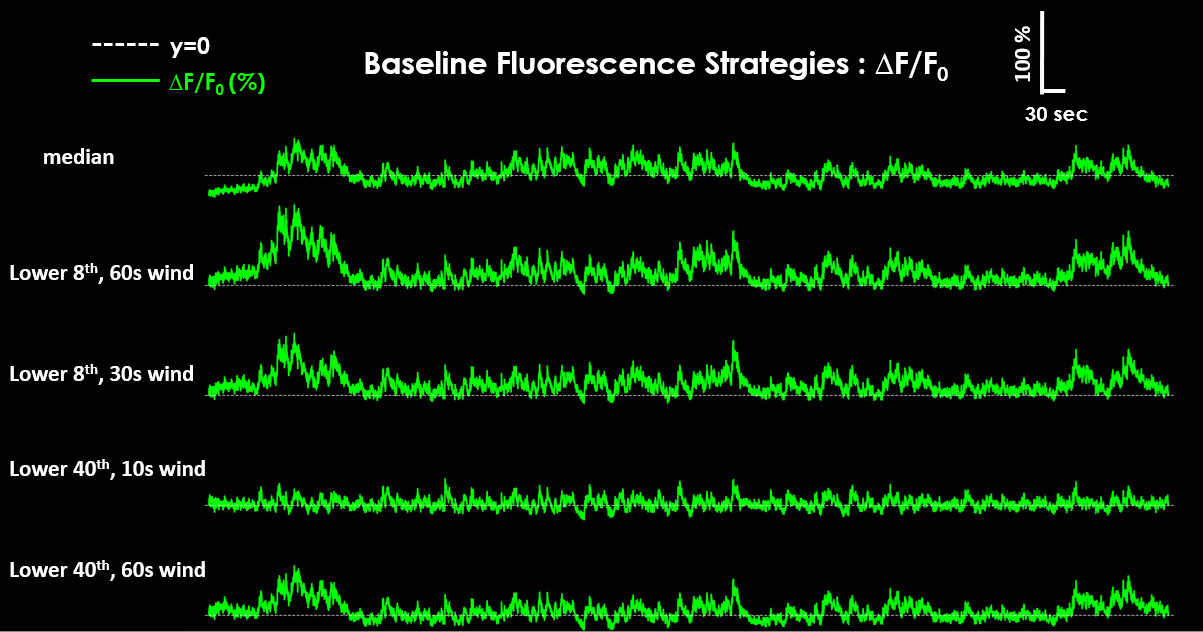

The ΔF/F (delta F over F) traces in 08_traces_dff.png show the change in fluorescence normalized by baseline. This is the standard metric for comparing neural activity across cells and experiments.

Window Size Selection for ΔF/F:

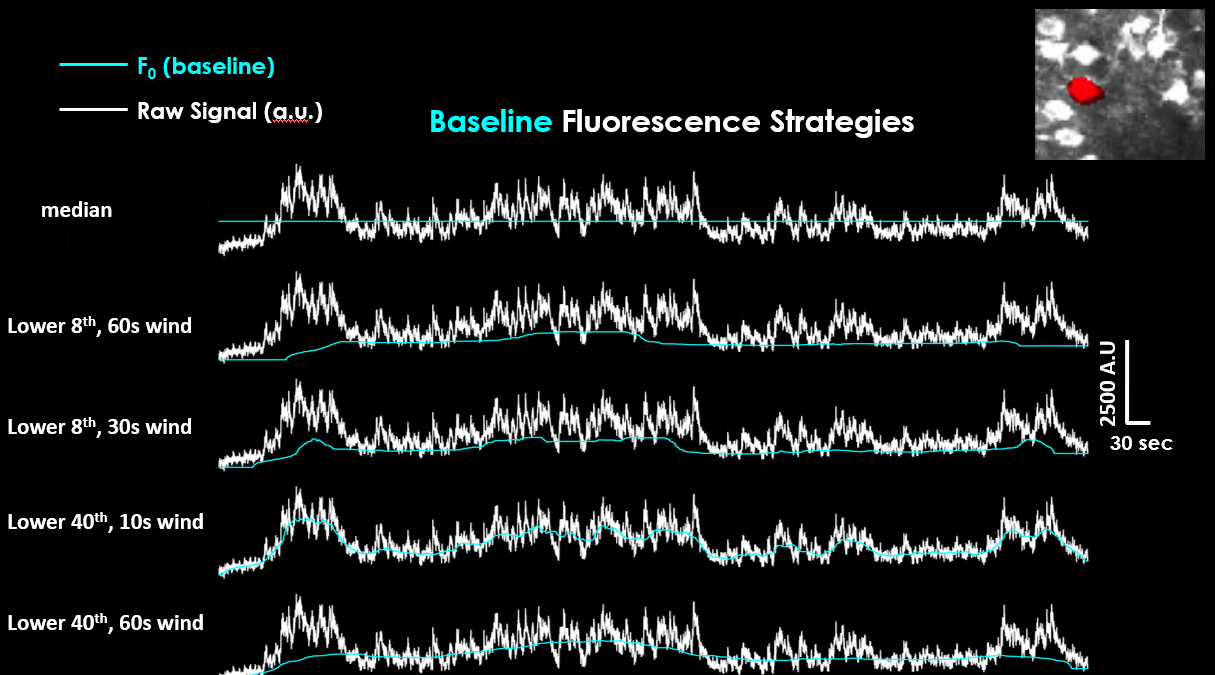

The dff_window_size parameter controls the rolling window used to estimate baseline F₀. Choosing the right window size is critical:

window_size = 10 × tau × framerate

Indicator	Tau (s)	Framerate	Recommended Window
GCaMP6f	0.7	30 Hz	~210 frames
GCaMP6s	1.8	30 Hz	~540 frames
GCaMP7s	1.0	17 Hz	~170 frames
GCaMP8f	0.25	30 Hz	~75 frames
GCaMP8s	0.5	30 Hz	~150 frames

Why 10× tau × framerate?

The window must span multiple calcium transients so the percentile filter can find true baseline between events
Too small: baseline contaminated by transients → underestimated ΔF/F
Too large: slow drifts not tracked → baseline mismatch

# Example: GCaMP7s at 17 Hz
tau = 1.0  # seconds
fs = 17.0  # Hz
window_size = int(10 * tau * fs)  # = 170 frames

dff = lsp.dff_rolling_percentile(F, window_size=window_size, percentile=20)

Shot Noise Levels#

The noise histograms (10_noise_accepted.png, 11_noise_rejected.png) show standardized shot noise levels for each ROI. This metric helps you:

Compare noise levels across datasets, recordings, and experiments
Identify problematic ROIs with unusually high noise
Assess overall recording quality

Shot Noise Formula:

\[\nu = \frac{\mathrm{median}_t\left( \left| \frac{\Delta F_t}{F_0} - \frac{\Delta F_{t+1}}{F_0} \right| \right)}{\sqrt{f_r}}\]

Median of frame-to-frame differences: Takes advantage of slow calcium dynamics (adjacent frames should be similar)
Median (not mean): Excludes outliers from fast transient onsets
Normalized by √framerate: Makes metric comparable across different acquisition rates

Interpreting Noise Values:

Noise Level	Quality	Interpretation
< 0.5 %/√Hz	Excellent	Very clean signal
0.5-1.0 %/√Hz	Good	Typical for healthy recordings
1.0-2.0 %/√Hz	Fair	May need filtering or careful analysis
> 2.0 %/√Hz	Poor	Consider excluding or investigating

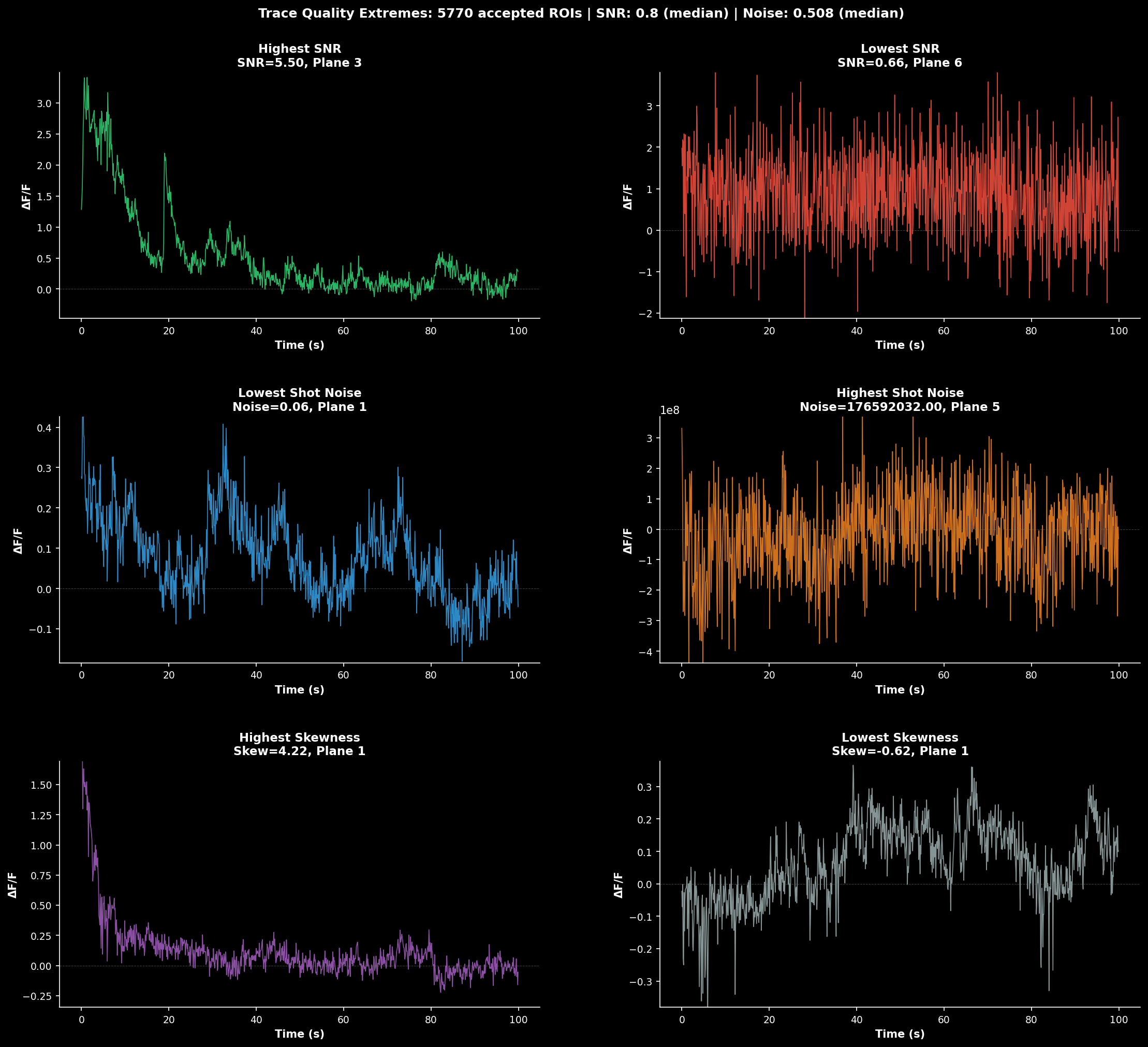

High vs Low Noise Levels — Top N neurons with highest and lowest standardized noise levels. Use this to identify outlier ROIs.#

Conditional outputs (if chan2_file provided):

File	Description
`data_chan2.bin`	Raw structural channel
`data_chan2_reg.bin`	Registered structural channel
`F_chan2.npy`	Channel 2 fluorescence
`Fneu_chan2.npy`	Channel 2 neuropil

Volumetric Pipeline#

Instead of a single file, provide a list of z-planes or a directory:

results = lsp.pipeline(
    input_data="D:/data/volume",    # directory or list of plane files
    save_path=None,                 # default: save next to input
    ops=None,                       # default: use MBO-optimized parameters
    planes=None,                    # default: process all planes
    roi=None,                       # default: stitch multi-ROI data
    keep_reg=True,                  # default: keep data.bin (registered binary)
    keep_raw=False,                 # default: delete data_raw.bin after processing
    force_reg=False,                # default: skip if already registered
    force_detect=False,             # default: skip if stat.npy exists
    dff_window_size=None,           # default: auto-calculate from tau and framerate
    dff_percentile=20,              # default: 20th percentile for baseline
    dff_smooth_window=None,         # default: auto-calculate from tau and framerate
    save_json=False,                # default: only save ops.npy
)

Volumetric Outputs#

When processing multiple planes with lsp.pipeline(), additional files are generated in the root save directory:

File	Description
`all_planes_masks.png`	Grid showing ROI masks overlaid on mean images for all planes
`volume_quality_metrics.png`	Compactness, skewness, ROI size, and radius per plane (mean ± std)
`volume_trace_analysis.png`	Example traces, SNR and fluorescence per plane, activity heatmap
`volume_summary.csv`	Per-plane statistics table (ROIs, SNR, acceptance rate)
`mean_volume_signal.png`	Mean signal intensity across z-depth
`rastermap.png`	Activity sorted by similarity across all planes
`orthoslices.png`	Orthogonal slices through the volume (XY, XZ, YZ)

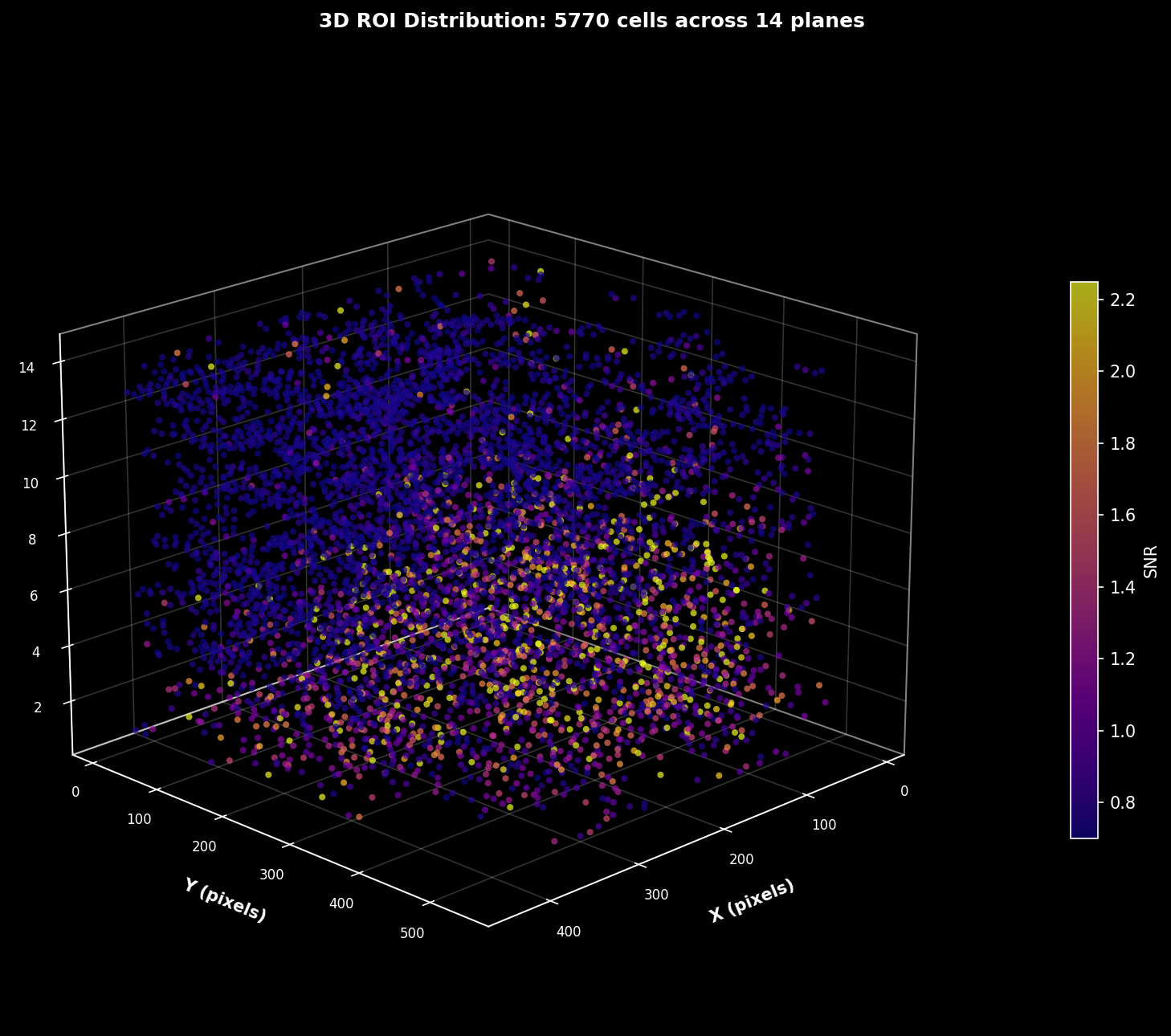

`roi_map_3d_snr.png`	3D scatter plot of ROI centroids colored by SNR
`volume_stats.npy`	Per-plane statistics dictionary

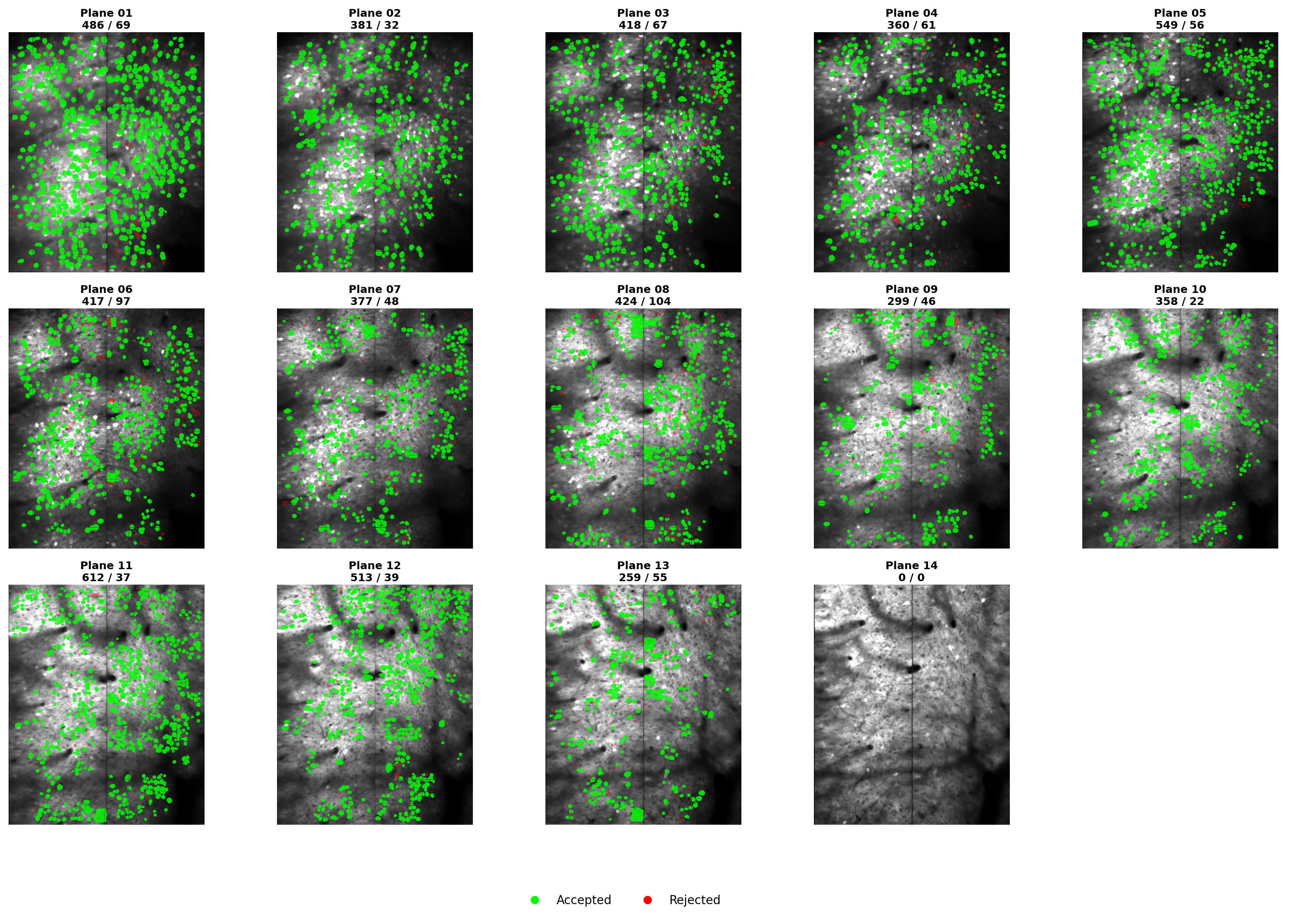

All Planes Masks#

Orthogonal Slices#

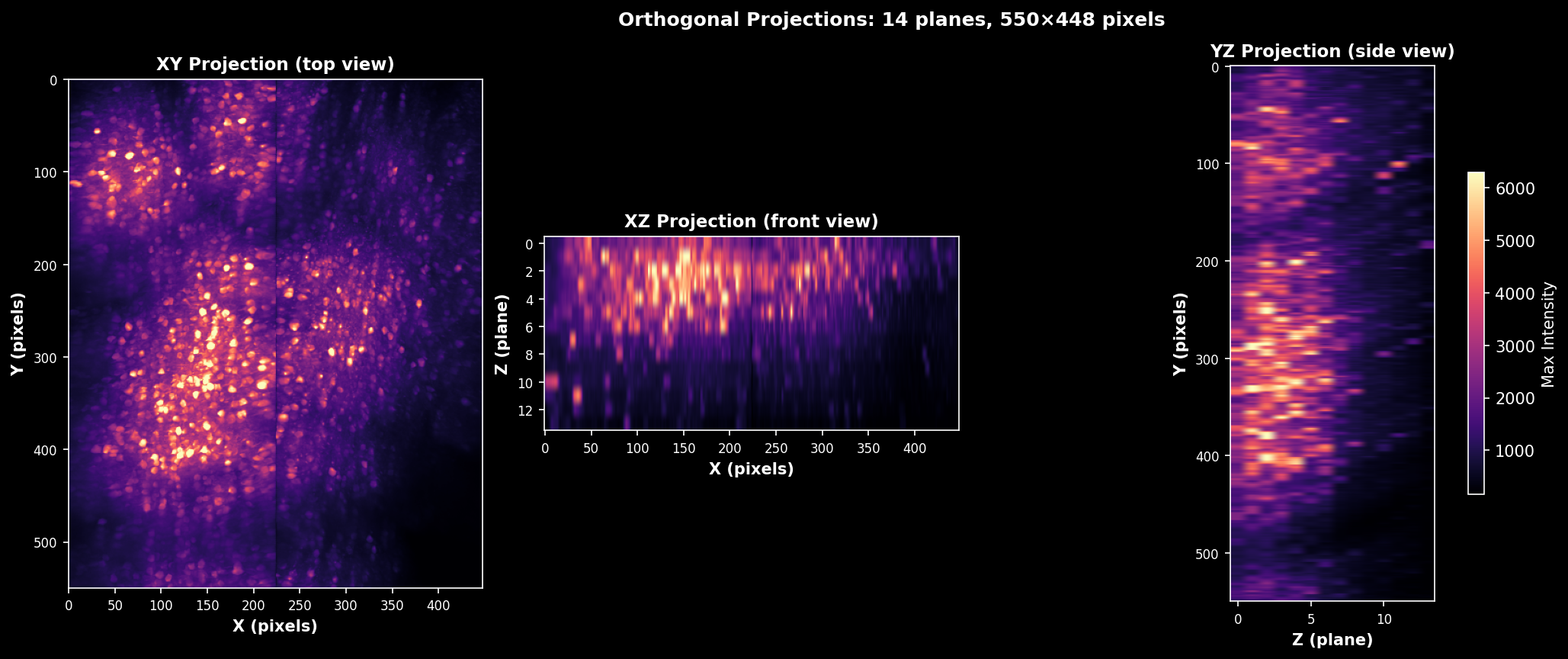

Orthoslices — **Orthogonal slices** through the mean intensity volume. Shows XY (axial), XZ (coronal), and YZ (sagittal) views with crosshairs indicating the slice positions. Useful for verifying volume alignment and identifying depth-dependent signal changes.#

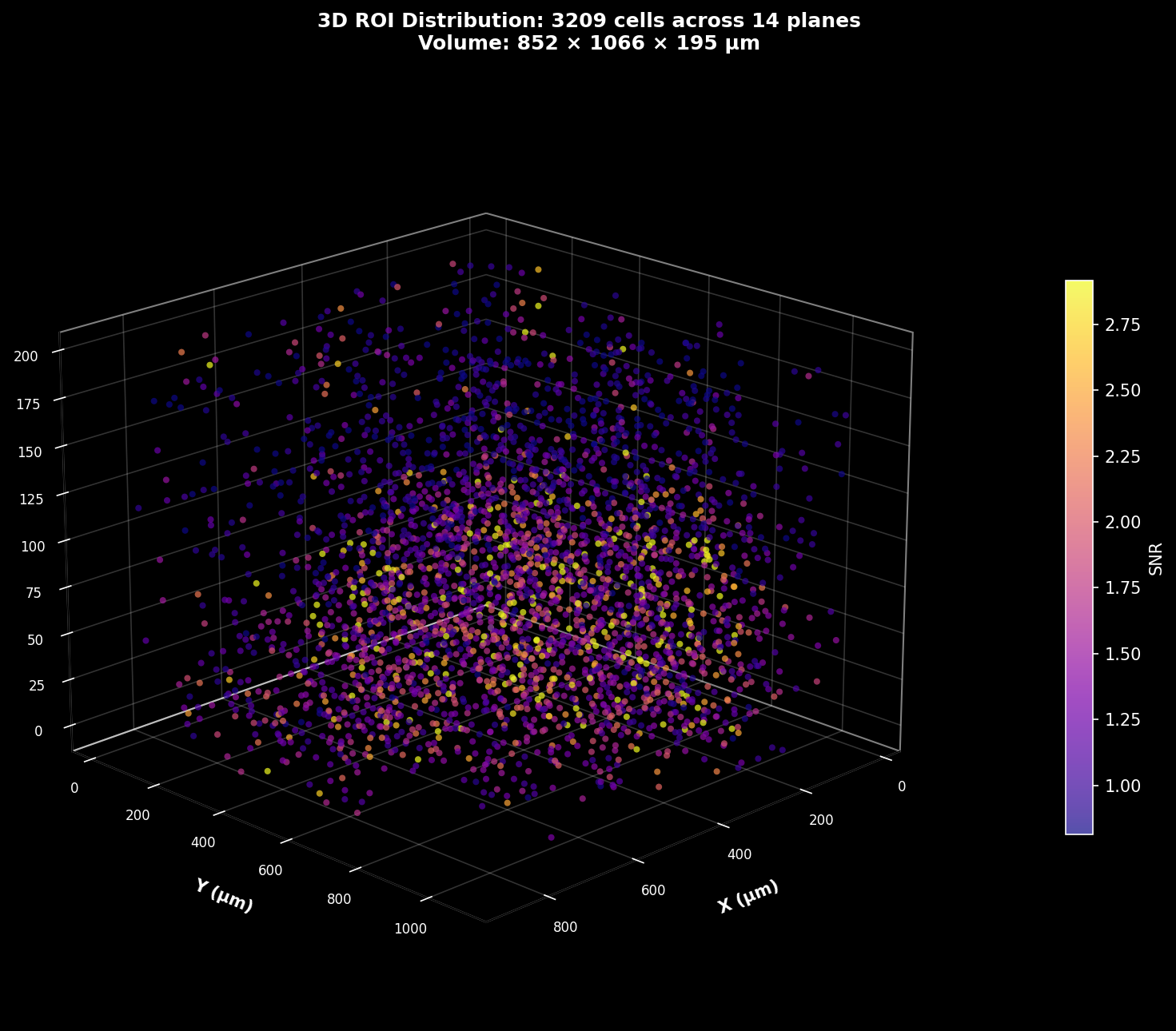

3D ROI Map#

Volume Trace Analysis#

Rastermap (Volume-wide)#

Registration Quality Metrics#

Requires at least 1500 frames per plane

Each plane directory contains PC-based registration quality metrics in pc_metrics/:

{plane_dir}/pc_metrics/
├── pc_metrics.csv              # Summary statistics
├── pc_metrics_panels.tif       # PC spatial patterns (Low/High)
└── pc_metrics_raw.npy          # Raw regDX array (5, 3)

PC metrics visualization: Top and bottom temporal halves for each principal component, showing spatial patterns used to assess registration quality.

Example PC metrics table (pc_metrics.csv):

   Rigid    Avg_NR    Max_NR
  0.0  0.072801  0.316228   ← PC1 (strongest spatial pattern)
  0.0  0.027177  0.141421   ← PC2
  0.0  0.039081  0.200000   ← PC3
  0.0  0.020034  0.141421   ← PC4
  0.0  0.018639  0.141421   ← PC5 (weakest pattern)

What this means:

Rows 0-4: First 5 Principal Components of the registered movie
Rigid: Global shift between temporal halves (pixels)
Avg_NR: Average non-rigid shift across blocks (pixels)
Max_NR: Maximum non-rigid shift across blocks (pixels)

Lower values = Better registration quality

Quality Benchmarks:

Metric	Excellent	Good	Fair	Poor
Rigid	< 0.1	0.1-0.3	0.3-0.5	> 0.5
Avg_NR	< 0.1	0.1-0.2	0.2-0.4	> 0.4
Max_NR	< 0.5	0.5-1.0	1.0-2.0	> 2.0

All values in pixels

Interpreting the example above:

Rigid = 0.0: ✅ Excellent! No global shifts detected
Avg_NR = 0.02-0.07: ✅ Excellent! Very small local motion
Max_NR = 0.14-0.32: ✅ Good! Maximum block shifts well-controlled

Common questions:

Why is Rigid=0 for all PCs? All PCs have negligible global shifts (< 0.001 pixels, rounded to 0.0)
Why do PC3 and PC4 have similar values? Later PCs capture weaker spatial patterns and often have similar residual motion characteristics
Why do I see non-rigid metrics when nonrigid=False? PC metrics always measure potential non-rigid motion to assess registration quality, even if non-rigid registration wasn’t performed

For detailed explanation, see Registration Metrics Guide.

Loading Results#

from lbm_suite2p_python import load_planar_results, dff_rolling_percentile

# Load a single plane's results
results = load_planar_results(ops_path, z_plane=0)
# Returns dict with: F, Fneu, spks, stat, iscell, z_plane
# iscell is (n_rois, 2): column 0 is classification (0/1), column 1 is probability

# Calculate ΔF/F with rolling percentile baseline
dff = dff_rolling_percentile(
    results['F'],
    window_size=500,  # frames
    percentile=20     # baseline percentile
)

# Filter for accepted cells only
iscell_mask = results['iscell'][:, 0].astype(bool)
F_cells = results['F'][iscell_mask]
spks_cells = results['spks'][iscell_mask]

Critical Parameters#

Understanding key Suite2p parameters is essential for good segmentation results.

Recommended: Anatomical Segmentation

For LBM data, we recommend anatomical segmentation with Cellpose over functional detection. Anatomical detection uses structural features (cell morphology) rather than activity correlations, which works better for densely labeled tissue and datasets with variable activity levels.

Anatomical Segmentation (Cellpose) - Recommended#

Anatomical segmentation uses Cellpose to detect cell bodies based on morphology rather than functional activity. This is the recommended approach for LBM data.

Quick Start: Anatomical Detection#

ops = {
    "anatomical_only": 3,      # Use enhanced mean image (recommended)
    "diameter": 6,             # Expected cell diameter in pixels
    "cellprob_threshold": 0.0, # Cell probability threshold
    "flow_threshold": 0.4,     # Flow error threshold
}

`anatomical_only` (default: 0)#

Enables anatomical segmentation using Cellpose. The value determines which image is used for detection:

Value	Image Used	Description
`0`	Disabled	Functional detection (correlation-based)
`1`	`max_proj / mean_img`	Ratio highlighting active areas
`2`	`mean_img`	Average image over all frames
`3`	`meanImgE`	Recommended: Enhanced mean with edge sharpening
`4`	`max_proj`	Maximum projection across frames

ops["anatomical_only"] = 3  # Use enhanced mean image

`diameter` (default: 0)#

Expected cell diameter in pixels. Required for Cellpose.

0: Auto-estimate (Suite2p default, but not recommended for Cellpose)
4-8: Typical for LBM data at 2 µm/pixel resolution
LBM override: If diameter is 0/None/NaN and anatomical_only > 0, LBM sets it to 8

ops["diameter"] = 6  # For ~12 µm cells at 2 µm/pixel

`cellprob_threshold` (default: 0.0)#

Probability threshold from Cellpose output to determine cell boundaries. More negative values include more pixels.

0.0: Standard threshold
-2.0: More permissive (include dimmer cells)
2.0: More stringent (only bright, clear cells)

ops["cellprob_threshold"] = 0.0  # Standard

`flow_threshold` (default: 1.5)#

Minimum Cellpose flow error to consider a region valid. Lower values include more ROIs.

1.5: Standard (Suite2p default)
0.4: More permissive (recommended for LBM)
0.1: Very permissive

ops["flow_threshold"] = 0.4  # More permissive for LBM data

`spatial_hp_cp` (default: 0.0)#

High-pass filtering applied before Cellpose segmentation. A float between 0 and 1.

0.0: No filtering (default)
0.5: Moderate high-pass (reduces background)
1.0: Strong high-pass

ops["spatial_hp_cp"] = 0.0  # No pre-filtering

Functional Detection Parameters#

For datasets where anatomical detection doesn’t work well, or when you need activity-based ROI detection, use functional parameters.

Example Dataset

Example dataset collected by Will Snyder with Dr. Charles Gilbert @ Rockefeller University.

Field	Value
Date	2025-03-06
Virus	jGCaMP8s
Framerate	17 Hz
FOV (Per ROI)	448 µm × 896 µm
Resolution	2 µm × 2 µm × 16 µm
Num-Planes	14

Visual Parameter Comparisons#

To see the effect of each parameter on segmentation results, it’s helpful to start with default parameters as a baseline.

Default parameter segmentation results — Default parameters yield **324** accepted and **737** rejected neurons.#

Visually it may be evident that we’re missing a few obvious cells:

Zoomed view showing missed cells — Zoomed view showing several obvious cells that were not detected with default parameters.#

There are generally 2 approaches toward curating a final dataset:

Approach 1: Tune parameters, thresholds and scaling factors to properly model your dataset
Approach 2: Use thresholds that maximize the number of cells detected, and use post-hoc correlation/spatial measures to curate cells

`threshold_scaling` (default: 1.0)#

Multiplier for detection threshold. Lower values detect more ROIs.

0.8-1.2: Good starting range
<0.8: May detect noise/background
>1.5: May miss dim cells

ops["threshold_scaling"] = 0.9  # More sensitive detection

Effect of threshold_scaling on detected cells — Effect of varying `threshold_scaling` on detected cells. Notably, increasing this threshold actually led to several cells being detected that were not otherwise detected, and vice-versa.#

`tau` (default: 1.0)#

Calcium indicator decay time constant in seconds. Critical for binning and deconvolution.

GCaMP expression is slow, often taking between 100 ms to over 1 second for the signal to rise and decay. This is the timescale of the sensor, in seconds. We need this value because one of the main performance optimizations is binning. We can bin our data because of this slow timescale - we set the bin-size to our sensor’s timescale because we expect all frames in this window to be the same (on average).

Indicator	Tau (seconds)
GCaMP6f	0.7-1.0
GCaMP6s	1.5-2.0
GCaMP7/8 variants	~1.0

When in doubt, round up!

Determines bin size: bin_size = tau * fs

ops["tau"] = 1.0  # For GCaMP6f/8 at 17 Hz → ~17 frames/bin

Effect of tau on detected cells — Effect of varying `tau` on segmentation results. Changing tau has a dramatic influence on detection.#

Preview Binned Movie using Tau and Framerate

You can preview the movie as it will be binned like so:

```python import numpy as np import suite2p

nframes = metadata[“num_frames”] bin_size = int(max(1, nframes // ops[“nbinned”], np.round(ops[“tau”] * ops[“fs”])))

ops = lsp.load_ops(r”./grid_search/registration/two0/plane0/ops.npy”) bin_path = r”./grid_search/registration/two0/plane0/data.bin”

with suite2p.io.BinaryFile(filename=bin_path, Ly=ops[“Ly”], Lx=ops[“Lx”]) as f: binned_data = f.bin_movie( bin_size=bin_size, bad_frames=ops.get(“badframes”), y_range=ops[“yrange”], x_range=ops[“xrange”], ) ```

`max_overlap` (default: 0.75)#

Maximum allowed spatial overlap between ROIs (0-1). If two masks overlap by a fraction > max_overlap, they will be discarded/rejected.

0.75: Default, reject ROIs with >75% overlap
1.0: Keep all overlapping ROIs
0.5: More stringent overlap rejection

ops["max_overlap"] = 0.85  # Allow more overlap for dense regions

Effect of max_overlap on detected cells — Effect of varying `max_overlap` on detected cells.#

`spatial_hp_detect` (default: 25)#

Gaussian filter size applied during functional cell detection to reduce background noise.

A good value for spatial_hp_detect will decrease the brightness of the background while increasing the contrast between background and neuron.

Effect of spatial_hp_detect on detected cells — Effect of varying `spatial_hp_detect` on detected cells.#

Warning

Physiologically relevant values for spatial high-pass filters are one of the biggest factors in quality detection. It is additionally very easy to set this value in such a way that 0 cells will be detected. A grid search is likely the most efficient way to test for the best spatial filter size.

Registration Parameters#

Note

The terms motion-correction and registration are often used interchangeably. Similarly, non-rigid and piecewise-rigid are often used interchangeably. Here, piecewise-rigid registration is the method used to correct for non-rigid motion.

We use Suite2p Registration to ensure spatial alignment across all frames in a movie. This means a neuron that appears in one location in frame 0 remains in the same spot in frame N.

Suite2p first runs rigid registration (frame-wide shifts using phase correlation), followed by optional non-rigid registration (local shifts in blocks).

Recommended tuning

Increase nimg_init if your template looks noisy or blurry
If there is remaining motion after rigid, try nonrigid = True
If registration looks unstable, try decreasing maxregshift or maxregshiftNR

Important

Visual inspection trumps all. Even if registration metrics look good, double check the video. And if it looks good but metrics are high, trust your eyes.

`do_registration` (default: 1)#

Controls whether to run registration:

0 or False: Skip registration entirely
1 or True: Run only if not already done (checks for refImg/meanImg/offsets)
2: Force re-registration even if already completed

ops["do_registration"] = 1  # Automatic: register if needed

`nonrigid` (default: True)#

Use block-wise non-rigid registration to handle local motion.

True: Use non-rigid (recommended for drifting FOV)
False: Use rigid registration only (faster, good for stable FOV)

ops["nonrigid"] = True
ops["block_size"] = [128, 128]  # Block size for non-rigid

`align_by_chan` (default: 1)#

Which channel to use for registration (1-based indexing):

1: Register using functional channel (default)
2: Register using structural channel (requires chan2_file)

# Two-channel registration with structural reference
ops_file = lsp.run_plane(
    input_path=functional_file,
    chan2_file=structural_file,  # Triggers align_by_chan=2
    ops=ops
)

`maxregshift` (default: 0.1)#

Maximum allowed registration shift as fraction of frame size.

0.1: Allow up to 10% of frame width/height
0.05: More conservative (5%)
0.2: Permissive for large drifts

ops["maxregshift"] = 0.15  # Allow 15% shift for large FOV drift

Registration Output Files#

Registration produces these files in addition to the main outputs:

File/Key	Description
`data.bin`	Motion-corrected movie (channel 1)
`data_chan2.bin`	Registered channel 2 (if `nchannels=2`)
`ops['xoff']`	Rigid X shifts for each frame
`ops['yoff']`	Rigid Y shifts for each frame
`ops['corrXY']`	Phase-correlation scores (frame vs reference)
`ops['refImg']`	Reference image used for registration

Registration Metrics (`ops['regDX']`)#

Suite2p computes PC-based metrics to assess registration quality:

Metric	Description
`regPC`	Spatial principal components used for QC
`tPC`	Time courses of principal components
`regDX`	Shift distance between split PCs (lower = better)

You can compute metrics manually:

from suite2p.registration import metrics
ops = metrics.get_pc_metrics(ops, use_red=False)

Extraction Parameters#

`neucoeff` (default: 0.7)#

Neuropil subtraction coefficient for deconvolution.

0.7: Standard value
0.5-1.0: Typical range
Higher values subtract more neuropil

# Corrected fluorescence used in deconvolution:
# dF = F - neucoeff * Fneu
ops["neucoeff"] = 0.7

`allow_overlap` (default: False)#

Whether ROIs can share pixels.

False: Overlapping pixels removed (default)
True: Pixels can belong to multiple ROIs (useful for dendrites)

ops["allow_overlap"] = True  # For overlapping dendritic segments

`inner_neuropil_radius` (default: 2)#

Inner radius (pixels) of neuropil annulus around each ROI.

2: Standard 2-pixel buffer
0: No buffer (neuropil immediately adjacent)
5+: Larger buffer for very bright cells

ΔF/F Parameters#

Tip

For detailed guidance on choosing window_size based on your indicator and framerate, see Understanding ΔF/F Traces in the Planar Outputs section.

Rolling Percentile Baseline (Recommended)#

from lbm_suite2p_python import dff_rolling_percentile

# Calculate window size: 10 × tau × framerate
tau = 1.0   # GCaMP7s decay time constant (seconds)
fs = 17.0   # Your acquisition framerate (Hz)
window_size = int(10 * tau * fs)  # = 170 frames

dff = dff_rolling_percentile(
    F,
    window_size=window_size,
    percentile=20,      # Use 20th percentile as baseline
    use_median_floor=False  # Optional: set min F₀ at 1% of median
)

Window size rule of thumb: Use ~10× the indicator decay time constant (tau) × frame rate. For example, with jGCaMP7s (tau≈1.0s) at 30Hz: 10 × 1.0 × 30 = 300 frames. This ensures the window spans multiple calcium transients so the percentile filter can find the baseline between events. See Suite2p Cell Detection for related binning logic.

When to use: Most datasets, handles slow baseline drifts.

Median Filter Baseline#

from lbm_suite2p_python import dff_median_filter

dff = dff_median_filter(F)
# Uses 1% of median as F₀ (simple but less adaptive)

When to use: Quick baseline for stable recordings.

Shot Noise Estimation#

from lbm_suite2p_python import dff_shot_noise

noise_levels = dff_shot_noise(dff, fr=17.0)  # Frame rate in Hz
# Returns noise level per neuron in %/√Hz units

Quantifies SNR for comparing across datasets.

Spike Deconvolution & Tau#

Most calcium imaging pipelines model neural activity as an exponential decay process following each spike, making τ (tau) a key hyperparameter.

Indicator Dynamics#

GCaMP Variant	Optimal Tau (s)	Notes / Sources
GCaMP6f (fast)	~0.5–0.7 s	Suite2p: ~0.7 s. OASIS/CNMF: ~0.5–0.7 s. CaImAn: ~0.4 s.
GCaMP6m (medium)	~1.0–1.25 s	Suite2p: ~1.0 s. OASIS: ~1.25 s. CaImAn: ~1.0 s.
GCaMP6s (slow)	~1.5–2.0 s	Suite2p: 1.25–1.5 s. OASIS/Suite2p: ~2.0 s. CaImAn: ~1.5–2.0 s.
GCaMP7f (fast)	~0.5 s	Similar to GCaMP6f.
GCaMP7m (medium)	~1.0 s (est.)	Estimated by analogy to GCaMP6m.
GCaMP7s (slow)	~1.0–1.5 s	In vivo half-decay ~0.7 s. Tau ≈ 1.0 s.
GCaMP8f (fast)	~0.3 s	Fastest decay; tenfold faster than 6f/7f.
GCaMP8m (medium)	~0.3 s	Slightly slower than 8f, still ~0.3 s.
GCaMP8s (slow)	~0.7 s	Faster than 6s.

GCaMP6 Family

Fast (6f): 0.5 s Medium (6m): 1.1 s Slow (6s): 1.8 s

GCaMP7 Family

7f: 0.45 s 7s: 1.0 s 7c: 0.8 s

GCaMP8 Family

8f: 0.25 s 8m: 0.3 s 8s: 0.5 s

Parameter Grid Search#

Example Dataset

Example dataset collected by Kevin Barber with Dr. Alipasha Vaziri @ Rockefeller University.

Field	Value
Animal	mk301
Date	2025-03-01
Virus	jGCaMP8s
Framerate	17 Hz
FOV	900 µm × 900 µm
Resolution	2 µm × 2 µm × 16 µm

Test multiple parameter combinations systematically. When tuning segmentation parameters, the easiest knobs to turn are threshold_scaling and max_overlap. Lower threshold_scaling → more candidate ROIs. Higher max_overlap → more overlapping ROIs are kept. But their effects aren’t linear or always intuitive, so it’s often best to grid search them.

import lbm_suite2p_python as lsp

# Define parameter grid
grid_params = {
    "threshold_scaling": [0.8, 1.0, 1.2],
    "tau": [0.7, 1.0, 1.5],
    "max_overlap": [0.7, 0.85]
}

# Run grid search on a single plane
lsp.grid_search(
    input_file=test_plane_file,
    save_path=grid_search_dir,
    grid_params=grid_params,
    ops=ops,
    force_reg=False,
    force_detect=True  # Always re-run detection
)

# Output structure:
# grid_search_dir/
# ├── thr0.80_tau0.70_max0.70/
# ├── thr0.80_tau0.70_max0.85/
# ├── thr0.80_tau1.00_max0.70/
# ...

Each combination gets its own folder with full Suite2p outputs.

Tip

Some values (like spatial_hp_cp, tau, or high_pass) can interact in non-obvious ways.

Grid searching more than 2 parameters is really the only way to evaluate these interactions, though this can take up a lot of memory and disk space. We encourage making sure ops['keep_movie_raw']=False (default) and ops['reg_tif'] = False (default).

Visualizing Grid Search Results#

You can loop through the results using the saved ops.npy files:

ops = lsp.load_ops("./grid_search/spatial/max0.75_thr1.00/plane0/ops.npy")
print("Accepted ROIs:", ops['iscell'].sum())

Registration Grid Search#

To evaluate what registration parameters you should use, you can try both enabling two-step registration and lowering the block-size for rigid registration.

base_ops["roidetect"] = False  # Skip detection, only register

search_dict = {
    "two_step_registration": [False, True],
    "block_size": [[128, 128], [64, 64]]
}

lsp.grid_search(
    input_file=input_tiff,
    save_path=save_path / "registration",
    grid_params=search_dict,
    ops=base_ops,
)

Post-Processing Filters#

LBM-Suite2p-Python includes filters to refine cell selection:

from lbm_suite2p_python.postprocessing import (
    filter_by_diameter,
    filter_by_area,
    filter_by_eccentricity,
    compute_event_exceptionality
)

# Load results
results = load_planar_results(ops_path)
iscell = results['iscell']
stat = results['stat']
ops = results['ops']

# Filter by size relative to median
iscell = filter_by_diameter(
    iscell, stat, ops,
    min_mult=0.3,  # Reject if <30% of median diameter
    max_mult=3.0   # Reject if >300% of median diameter
)

# Filter by area
iscell = filter_by_area(
    iscell, stat,
    min_mult=0.25,  # Reject if <25% of median area
    max_mult=4.0    # Reject if >400% of median area
)

# Filter elongated ROIs
iscell = filter_by_eccentricity(
    iscell, stat,
    max_ratio=5.0  # Reject if bounding box ratio >5:1
)

# Compute event exceptionality (for rare event detection)
fitness, erfc, sd_r, md = compute_event_exceptionality(
    results['spks'],
    N=5,  # Consecutive samples
    robust_std=False
)

Multi-ROI Processing#

LBM-Suite2p-Python automatically detects and merges ScanImage multi-ROI acquisitions.

Automatic detection: If “roi” appears in filename (case-insensitive), merging is triggered.

Example filenames:

plane01_roi00.tif
plane01_roi01.tif
plane02_roi00.tif
plane02_roi01.tif

After run_volume():

# ROIs are automatically merged per plane
# Output structure:
# save_path/
# ├── plane01_roi00/  # Individual ROI results
# ├── plane01_roi01/
# ├── merged_mrois/
# │   ├── plane01/    # Merged results for plane 1
# │   └── plane02/    # Merged results for plane 2
# └── volume_stats.npy  # Uses merged results

Images are stitched horizontally, stat arrays concatenated.

ΔF/F Calculation#

The gold-standard formula for measuring cellular activity is “Delta F over F₀”, or the change in fluorescence intensity normalized by the baseline activity:

\[\Delta F/F_0 = \frac{F - F_0}{F_0}\]

Here, F₀ is a user-defined baseline that may be static (e.g., median over all frames) or dynamically estimated using a rolling window.

Key Takeaways

\(\Delta F/F\) reflects intracellular calcium levels, but often in a nonlinear way
GCaMP behaves differently due to its low baseline brightness and its nonlinearity
There is no single recipe on how to compute \(\Delta F/F\)
Computation of \(\Delta F/F\) must be adapted to cell types, activity patterns, and noise

Cell Activity (ΔF/F) — ΔF/F traces for 50 cells, sorted by similarity using the Rastermap algorithm.#

Baseline F₀ Strategies#

Choosing the correct baseline strategy depends on many factors:

Cell type
Brain location
Frame-rate
Virus Kinetics
Scientific question

Method	How It’s Performed	Pros	Cons
Percentile Baseline Subtraction	Use a moving window to define F₀ as low percentile (e.g., 10–20th) of the trace.	Adaptive baseline; handles long-term drift.	Choice of window size/percentile affects sensitivity.
Z-Score Thresholding	Normalize trace by mean/SD, define events above N standard deviations.	Removes baseline drift; good for noisy data.	Sensitive to noise if SD is low; assumes Gaussian distribution.
dF/F Thresholding	Compute (F − F₀)/F₀ and define a fixed or adaptive threshold for events.	Widely used; compatible with GCaMP, Fluo dyes.	Sensitive to F₀ definition; arbitrary thresholds can bias results.
Standard Deviation (SD) Masking	Define active frames/regions where ΔF exceeds N×SD of baseline.	Objective thresholding for event detection.	Threshold choice heavily affects results.
Image Subtraction (Frame-to-Frame)	Compute ΔF = Fₙ − Fₙ₋₁ or F − background to detect sudden changes.	Simple, fast; used for wave detection.	Sensitive to noise; misses gradual changes.

Comparison of dF/F baseline strategies — Comparison of different ΔF/F₀ baseline correction methods across selected cells.#

Resulting DFF values from baseline strategies — The resulting ΔF/F₀ traces can look different depending on the chosen baseline strategy.#

Resulting DFF values from baseline strategies with Events — The resulting ΔF/F₀ traces with detected events overlaid.#

Troubleshooting#

No Cells Detected#

Possible causes:

threshold_scaling too high → Lower to 0.8-0.9
tau too small → Increase (when in doubt, round up!)
spatial_hp_detect too large → Try 15-25 instead of default
diameter wrong → Check actual cell sizes in pixels

Diagnosis:

# Check binned movie
import suite2p
bin_size = int(ops["tau"] * ops["fs"])
with suite2p.io.BinaryFile(filename=data_bin, Ly=ops["Ly"], Lx=ops["Lx"]) as f:
    binned = f.bin_movie(bin_size=bin_size, y_range=ops["yrange"], x_range=ops["xrange"])
# Visualize binned data to see if cells are visible

Registration Artifacts#

Wobbling/warping at edges:

Increase spatial_taper (default 40 → 60-80)
Decrease block_size (default [128,128] → [64,64])

Large drift not corrected:

Increase maxregshift (default 0.1 → 0.15-0.2)
Check refImg quality
